Replacement motherboard with integrated 4G module for Cellcom Edge and Keycell systems.
Cellular Keypads

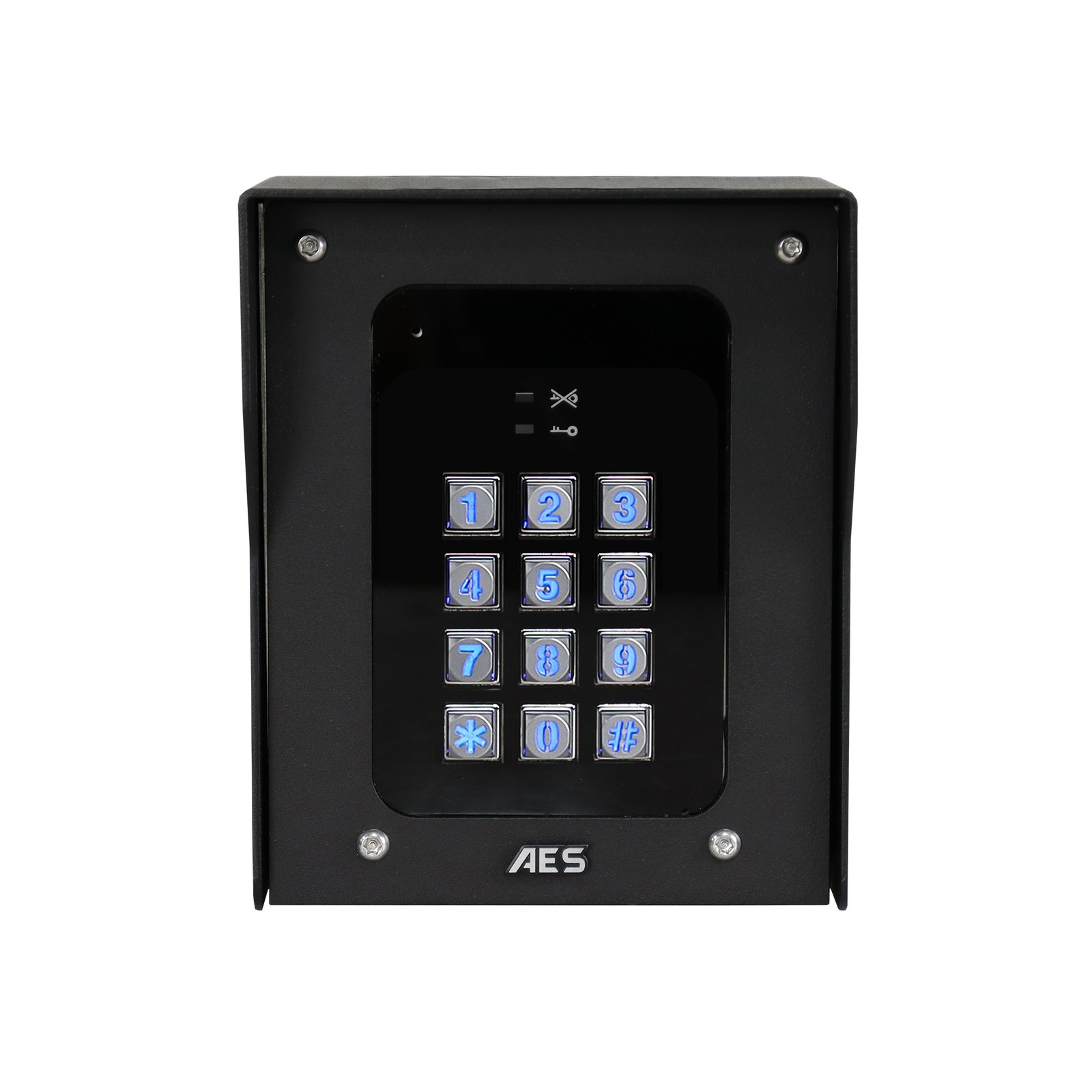

AES Auxiliary Pedestal Mount Keypad | AES-KEY-AUX-PBK-US
Auxiliary Keypad and 125k Prox Reader, Powder Coat Pedestal. (Surface Mount)
- (compatible with Prime & Keycell Ranges)
-
Up to 6 auxiliary units can be connected to a master unit: Relay 1 and 2 on master unit; relays 3 to 8 on auxiliary units.
-
Can have a mix of keypads & prox reader units in one set up.
-
DDA LEDS on each auxiliary unit indicates correct or incorrect code/card used.
-
Relay on every auxiliary unit that can be set via a dip switch.
-
Keypad tones/ confirmation sound can be adjusted on auxiliary units.
-
Units are wired via 5 cores of cat 5 cable.
-
Now compatible with our AES PRO APP.
$380.00
| Brand | AES Global |
|---|---|
| Product Type | Keypad |
* Power: 24v d.c
* Current: 300mA/2A Peak | 100mA Per Auxiliary Unit
* Weather Rating: IP55
* Relay Type: 2 x N/C & N/O Contacts
* Total Permanent Keypad Codes: 250
* Total Permanent Prox Cards: 250
* Time-Restricted Codes/Cards: 250
* Temporary Codes/Cards: 50
